RF Remote Control Subsystem

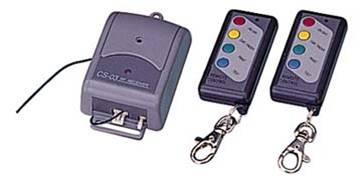

CS-03M4 RF Remote Control Subsystem
Product Name : RF Remote Control Subsystem
Product Description


1. Receiver Type : Super Regenerative
2. Demodulation : AM/ASK
3. Operation Frequency : 433.92MHz
4. Sensitivity : -107 dbm
5. Power Supply : 12V DC / 24V AC
6. Number of Relay : 2 (NO/NC)
7. Relay Operating Mode : Pulse / Sustaining / Latch
8. Memory Capacity : 15 / 63 / 255 transmitter keys
9. Overall Dimension : 93 x 75 x 30 mm

Q'ty :


    Product Character

          This is an RF remote control subsystem with 2-button transmitter and 2 relays built inside the system with rolling code. It’s the active low type. Major application is for the garage opener remote control. You can also use it as a general-purpose remote control system to control many applications around your home or for other hobby projects. You can add up to 15 transmitters per system.

    Each model can be independently programmed to set the relay output mode as follows:

    • Pulse type

    The activated relay will be closed for 2 seconds for each activation. This is the most widely used    application such as garage opener.

    • Sustaining type

    The activated relay will be closed for as long as the transmitter button is held down. You can connect it to a buzzer so that the buzzer will sound for as long as the transmitter’s button is down.

    • Latch type

    The activated relay will be closed until you push the button again. You can use it to control a 110V or 220V AC lamp or appliance by connecting through a suitable external strong AC-relay first. Push the transmitter’s button to turn the lamp or the appliance on. Repress the button will turn it off.

    Including :

    1. Main Unit

    2. Transmitter X 2 (depending on order) (TX-4312R or TX-4311R)

    3. Wire Harness (8-pin, 6-pin)

    4. Receiving Antenna

    5. Fuse (2A or smaller)

     Application :

    n   Automotive remote entry systems

    n   Automotive alarm systems

    n   Automotive immobilizer

    n   Gate and garage door openers

    n   Electronic door locks

    n   Identity tokens

    n   Burglar alarm systems
