Receiver Module
Product Description
MODEL NO. RX-3302
1. Sensitivity : -103 dbm
2. Current Consumption : 1.8mA
3. Working Voltage : 5V
4. Modulation : ASK
5. Decoder : NO
6. Channel : NO
7. Data Rate : 2.5K/s
8. Bandwidth : 12M
9. Reference Distance : 130M
10. Size : 50.1 x 18.2 mm
Enlargement
Product Character
RX-3302 is the radio frequency receiver module, which can facilitate the OEM designers to design their remote control applications in remote control in the quickest way. The circuit is designed with SMD components and the module size is small enough to be able to be fitted in almost any application.

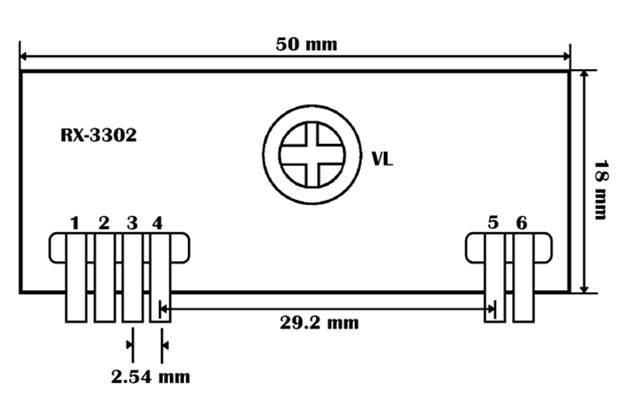

MECHANICAL DIMENSIONS AND PIN-OUT
RX-3302
| PIN 1: GND | PIN 2: Digital Output |
| PIN 3: VCC (5V DC) | PIN 4: Linear Output (For Testing) |
| PIN 5: ANT (Antenna) | PIN 6: GND |
Application
n Automotive remote entry systems
n Automotive alarm system
n Gate and garage door openers
n Electronic door locks
n Burglar alarm systems
