RX-3304 Receiver Module
Product Name : Receiver Module
Product Description

MODEL NO. RX-3304

1. Sensitivity : -104 dbm
2. Current Consumption : 4.31mA
3. Working Voltage : 5V
4. Modulation : ASK
5. Decoder : NO
6. Channel : NO
7. Data Rate : 2.5K/s
8. Bandwidth : 12M
9. Reference Distance : 130M
10. Size : 43.6 x 10.4 mm


Q'ty :
    Enlargement



    Product Character

          RX-3304 is the radio frequency receiver module, which can facilitate the OEM designers to design their remote control applications in remote control in the quickest way.  The circuit is designed with SMD components and the module size is small enough to be able to be fitted in almost any application.

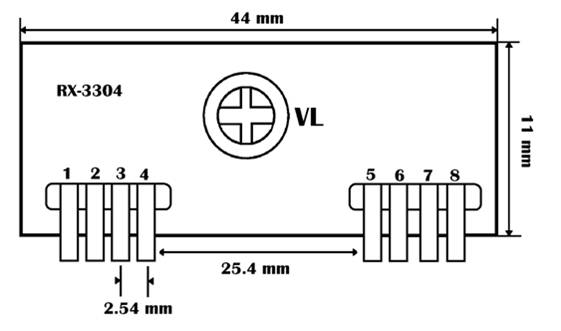

    MECHANICAL DIMENSIONS AND PIN-OUT

    RX-3304

    Receiver Module

    PIN 1 : GND                       PIN 2 : Digital Output
    PIN 3 : Linear Output (For Testing)    PIN 4 : VCC (5V DC)
    PIN 5 : VCC (5V DC)   PIN 6 : GND
    PIN 7 : GND   PIN 8 : ANT



     Application

    n   Automotive remote entry systems

    n   Automotive alarm system

    n   Gate and garage door openers

    n   Electronic door locks

    n   Burglar alarm systems
