Receiver Module
Product Description

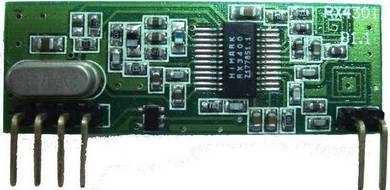

MODEL NO. RX-4301
1. Sensitivity : -104 dbm
2. Current Consumption : 2mA
3. Working Voltage : 5V
4. Modulation : ASK
5. Decoder : NO
6. Channel : NO
7. Data Rate : 15K/s
8. Bandwidth : 2.9M
9. Reference Distance : 200M
10. Size : 46.2 x 16.6 mm
Enlargement
Product Character
RX-4301 is the radio frequency receiver module, which can facilitate the OEM designers to design their remote control applications in remote control in the quickest way. The circuit is designed with SMD components and the module size is small enough to be able to be fitted in almost any application.
MECHANICAL DIMENSIONS AND PIN-OUT
RX-4301
| PIN 1: GND | PIN 2: Digital Output |
| PIN 3: VCC (5V DC) | PIN 4: Two options for this pin (see remarks) |
| PIN 5: ANT (Antenna) | PIN 6: GND |
Remarks :
For PIN 4
Option A: No connection (Default)
Option B: Can be connected to any port of the microprocessor. LOW for Power Down (Active LOW).
Application
n Automotive remote entry systems
n Automotive alarm systems
n Gate and garage door openers
n Electronic door locks
n Burglar alarm systems
