RX-4303 Receiver Module
Product Name : Receiver Module
Product Description

MODEL NO. RX-4303

1. Sensitivity : -114 dbm
2. Current Consumption : 4.6mA
3. Working Voltage : 5V
4. Modulation : ASK
5. Decoder : NO
6. Channel : NO
7. Data Rate : 20K/s
8. Bandwidth : 600K
9. Reference Distance : 330M
10. Size : 50.1 x 18.2 mm


Q'ty :
    Enlargement



    Product Character

          RX-4303 is the radio frequency receiver module which can facilitate the OEM designers to design their remote control applications in remote control in the quickest way. The circuit is designed with SMD components and the module size is small enough to be able to be fitted in almost any application. This module has been used on our CS-04R2 general purpose remote control subsystem which has been CE approved.

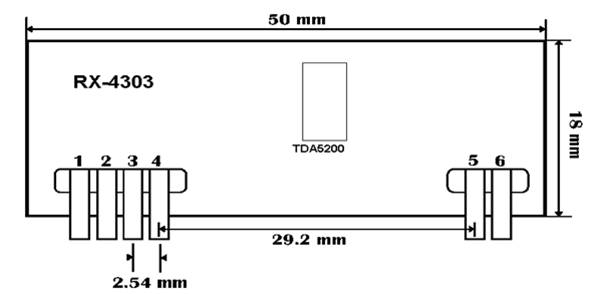

    MECHANICAL DIMENSIONS AND PIN-OUT

    RX-4303

    Receiver Module

    PIN 1: GND    PIN 2: Digital Output
    PIN 3: VCC (5V DC)   PIN 4: Linear Output (For Testing)
    PIN 5: ANT (Antenna)    PIN 6: GND



     Application

    n   Automotive remote entry systems

    n   Automotive alarm systems

    n   Gate and garage door openers

    n   Electronic door locks

    n   Burglar alarm systems
